Florida’s Coral Reef Water Quality Data Compilation (FCRWQDC)

Data ingestion and initial analysis from FL WIN water quality database and other sources. Below are some statistics on data across all analytes and programs. For more information on specific analytes and providers, see the analyte reports and provider reports.

Data for each analyte can be downloaded from the relevant analyte report. The full compiled data can be downloaded from the University of South Florida here

Florida Coral Reef Water Quality Database Compilation (FCRWQDC). This work is a product of the University of South Florida Institute for Marine Remote Sensing (IMaRS), funded by the Florida Department of Environmental Protection (FDEP).

get data across all programs
library("here")
source(here("R/getAllData.R"))
df <- getAllData()
create .csv of all data
# reduce to only cols we need & save to csv
df %>%
  mutate(
    source = program,
    site = Monitoring.Location.ID,
    datetime = Activity.Start.Date.Time,
    analyte = DEP.Analyte.Name,
    value = DEP.Result.Value.Number,
    units = DEP.Result.Unit,
    latitude = Org.Decimal.Latitude,
    longitude = Org.Decimal.Longitude,
    sample_depth = Activity.Depth,
    .keep = "none") %>%
  write.csv(here("data", "exports", "allData.csv"))

List of Analytes:

list all analytes
print(unique(df$DEP.Analyte.Name))
 [1] "Temperature"                       "Salinity"
 [3] "Ammonium"                          "Nitrite"
 [5] "Nitrate"                           "Nitrate+Nitrite"
 [7] "Orthophosphate"                    "Silicate"
 [9] "Chlorophyll_a"                     "Pheophytin"
[11] "Dissolved_Oxygen"                  "pH"
[13] "Specific_Conductivity"             "Turbidity"
[15] "Total_Kjeldahl_Nitrogen"           "Phosphorus"
[17] "Total_Nitrogen"                    "Fecal_Coliforms"
[19] "Enterococci"                       "Ammonia"
[21] "Ammonia_plus_Ammonium"             "Phosphorus__orthophosphate_as_PO4"
[23] "Phosphorus_as_PO4"                 "Nitrate.Nitrite"
[25] "TN"                                "TP"
[27] "Si"

Overall statistics:

skimr on all data
library(skimr)
skim(df)
Data summary
Name df
Number of rows 945624
Number of columns 95
_______________________
Column type frequency:
character 66
logical 3
numeric 26
________________________
Group variables None

Variable type: character

skim_variable n_missing complete_rate min max empty n_unique whitespace
DEP.Result.ID 567407 0.40 7 43 0 325598 0
Activity.ID 567407 0.40 7 33 0 86374 0
time 887184 0.06 5 5 0 1421 0
Activity.Start.Date.Time 95 1.00 0 19 9950 48020 0
Monitoring.Location.ID 1508 1.00 0 14 22213 1751 0
Activity.Type 567407 0.40 1 35 0 14 0
Activity.Depth.Unit 567407 0.40 0 7 24857 5 0
Activity.Depth.Top.Bottom.Unit 887184 0.06 4 4 0 2 0
Sample.Collection.Type 567407 0.40 0 22 10452 7 0
Value.Qualifier 406239 0.57 0 5 184005 127 0
Result.Comments 625804 0.34 0 874 280333 936 0
DEP.Analyte.Name 0 1.00 2 33 0 27 0
DEP.Result.Unit 5376 0.99 0 10 24230 20 0
original.analyte.name 0 1.00 2 44 0 67 0
program 0 1.00 3 10 0 8 0
ProgramName 922583 0.02 36 36 0 1 0
Habitat 922583 0.02 12 12 0 1 0
IndicatorName 922583 0.02 9 13 0 3 0
ParameterName 922583 0.02 2 23 0 10 0
ParameterUnits 922583 0.02 3 9 0 6 0
ProgramLocationID 922583 0.02 1 2 0 55 0
ManagedAreaName 922583 0.02 29 29 0 1 0
Region 922583 0.02 2 2 0 1 0
ActivityType 922583 0.02 5 6 0 2 0
SampleDate 922583 0.02 23 23 0 2134 0
ActivityDepth_m 922583 0.02 4 4 0 1 0
RelativeDepth 922583 0.02 7 7 0 1 0
TotalDepth_m 922583 0.02 4 4 0 1 0
MDL 922583 0.02 4 4 0 1 0
PQL 922583 0.02 4 4 0 1 0
DetectionUnit 922583 0.02 4 4 0 2 0
ValueQualifier 922583 0.02 4 4 0 1 0
ValueQualifierSource 922583 0.02 4 4 0 1 0
SampleFraction 922583 0.02 4 4 0 1 0
ResultComments 922583 0.02 4 21 0 2 0
SEACAR_QAQCFlagCode 922583 0.02 6 13 0 23 0
SEACAR_QAQC_Description 922583 0.02 98 195 0 23 0
SEACAR_EventID 922583 0.02 36 36 0 2394 0
ExportVersion 922583 0.02 23 23 0 2 0
data_source 916658 0.03 5 10 0 2 0
CLIENT SAMPLE ID 939699 0.01 1 3 0 70 0
LAB SAMPLE ID 939699 0.01 11 11 0 494 0
MATRIX 939699 0.01 5 5 0 1 0
COLLECTED 939699 0.01 10 10 0 23 0
ANALYTE 939699 0.01 8 27 0 12 0
SAMPLE RESULT 940669 0.01 3 9 0 1545 0
REPORTING LIMIT 942167 0.00 1 6 0 10 0
UNITS 939699 0.01 3 10 0 8 0
METHOD 939699 0.01 10 29 0 8 0
DILUTION 939699 0.01 1 2 0 5 0
ANALYZED 939699 0.01 10 10 0 123 0
PREPARED 939699 0.01 10 10 0 127 0
source_file 939699 0.01 19 22 0 23 0
SAMPLE COLLECTION DATE 939699 0.01 9 10 0 23 0
Organization.ID 87406 0.91 7 9 0 10 0
Org.Latitude..DD.MM.SS.SSSS. 844604 0.11 0 11 90448 22 0
Org.Longitude..DD.MM.SS.SSSS. 844604 0.11 0 12 90448 22 0
WBID 625847 0.34 0 6 37805 115 0
Matrix 625847 0.34 13 21 0 4 0
Sampling.Agency.Name 92782 0.90 7 58 0 9 0
DEP.Result.Value.Text 736350 0.22 0 12 201123 2 0
Sample.Fraction 625847 0.34 0 9 131120 3 0
Lab.ID 625847 0.34 0 6 102313 10 0
source 625847 0.34 3 9 0 6 0
Date 940248 0.01 11 14 0 664 0
datetime 940280 0.01 17 17 0 661 0

Variable type: logical

skim_variable n_missing complete_rate mean count
Activity.Top.Depth 945624 0 NaN :
Activity.Bottom.Depth 945624 0 NaN :
Audit.Censored.Decisions 945624 0 NaN :

Variable type: numeric

skim_variable n_missing complete_rate mean sd p0 p25 p50 p75 p100 hist
year 887184 0.06 2020.14 2.99 2014.00 2018.00 2021.00 2023.00 2024.00 ▅▅▅▇▇
month 887184 0.06 6.60 3.56 1.00 3.00 7.00 10.00 12.00 ▇▅▅▅▇
day 887184 0.06 14.53 8.56 1.00 7.00 14.00 22.00 31.00 ▇▆▆▆▃
lat_deg 887184 0.06 25.10 0.99 24.00 24.00 25.00 25.00 28.00 ▅▇▂▂▁
lat_min 887184 0.06 30.31 15.93 0.03 20.42 33.09 42.61 59.83 ▆▅▇▇▅
Org.Decimal.Latitude 568087 0.40 25.78 0.65 24.40 25.47 25.79 26.09 28.78 ▂▇▂▁▁
lon_deg 887184 0.06 -81.14 0.82 -85.00 -82.00 -81.00 -81.00 -80.00 ▁▁▃▇▃
lon_min 887184 0.06 26.48 17.05 0.00 12.17 22.69 42.98 60.00 ▇▇▅▃▅
Org.Decimal.Longitude 568087 0.40 -80.51 0.69 -85.02 -80.44 -80.21 -80.12 -79.29 ▁▁▁▂▇
Activity.Depth 544803 0.42 0.41 0.23 0.00 0.12 0.50 0.50 1.00 ▃▁▇▂▁
DEP.Result.Value.Number 22840 0.98 11.13 527.26 -0.03 0.10 0.50 2.10 53465.00 ▇▁▁▁▁
RowID 922583 0.02 1009723.34 798651.12 486217.00 514368.00 534968.00 1551534.00 3870318.00 ▇▂▁▁▁
ProgramID 922583 0.02 4058.00 0.00 4058.00 4058.00 4058.00 4058.00 4058.00 ▁▁▇▁▁
IndicatorID 922583 0.02 6.72 0.64 6.00 6.00 7.00 7.00 8.00 ▆▁▇▁▂
ParameterID 922583 0.02 8.84 6.57 1.00 3.00 6.00 16.00 19.00 ▇▅▁▂▆
AreaID 922583 0.02 6.00 0.00 6.00 6.00 6.00 6.00 6.00 ▁▁▇▁▁
ResultValue 922583 0.02 12.86 41.22 0.00 0.29 4.89 24.47 5389.00 ▇▁▁▁▁
Year 922583 0.02 2019.17 2.12 2016.00 2017.00 2019.00 2021.00 2023.00 ▇▆▇▃▅
Month 922583 0.02 6.55 3.44 1.00 3.00 7.00 9.00 12.00 ▇▅▅▆▇
OriginalLatitude 922583 0.02 25.80 0.02 25.77 25.78 25.79 25.81 25.87 ▆▇▂▁▂
OriginalLongitude 922583 0.02 -80.15 0.01 -80.17 -80.16 -80.15 -80.13 -80.12 ▇▆▅▅▇
Include 922583 0.02 1.00 0.04 0.00 1.00 1.00 1.00 1.00 ▁▁▁▁▇
MADup 922583 0.02 1.00 0.00 1.00 1.00 1.00 1.00 1.00 ▁▁▇▁▁
DEP.MDL 735993 0.22 0.04 0.47 0.00 0.00 0.01 0.06 50.50 ▇▁▁▁▁
DEP.PQL 735993 0.22 0.15 2.28 0.00 0.01 0.03 0.10 250.00 ▇▁▁▁▁
Station 940248 0.01 289.71 80.79 200.00 231.75 270.50 314.25 509.00 ▇▇▁▁▂

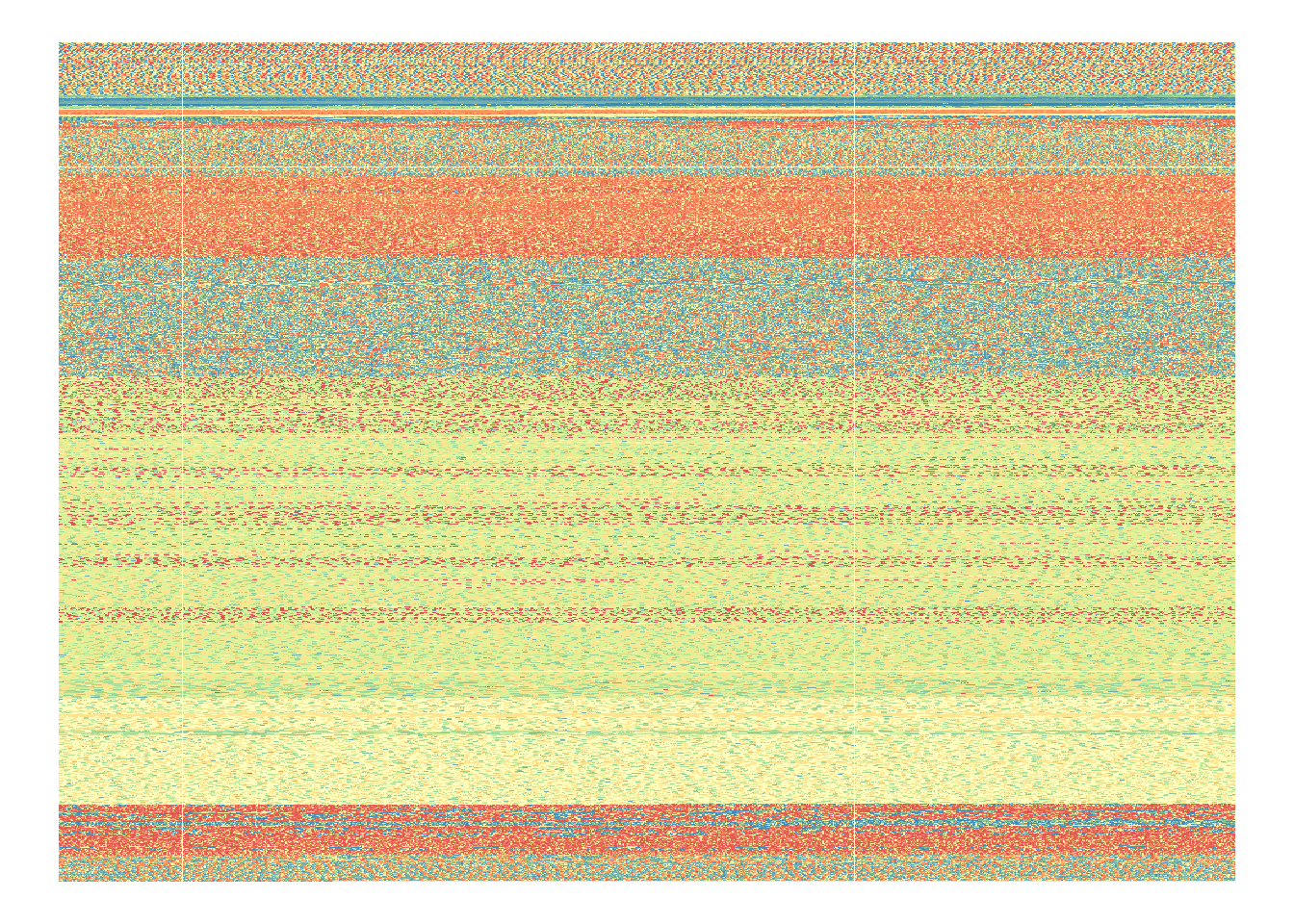

Create artistic data image
library(dplyr)
library(reshape2)  # for melt()
library(ggplot2)
library(viridis)
library(RColorBrewer)# for scale_fill_distiller()

# 1. Extract & drop NA
vals_raw <- df$DEP.Result.Value.Number
vals_raw <- vals_raw[!is.na(vals_raw)]

# 2. Log-transform
v1 <- log10(vals_raw + 1)

# 3. Percentile of the log-values
pct1 <- ecdf(v1)(v1)

# 4. Grid dims
N    <- length(pct1)
ncol <- ceiling(sqrt(N))
nrow <- ceiling(N / ncol)

# 5. Pad
pad_len <- (nrow * ncol) - N
p1_pad  <- c(pct1, rep(NA, pad_len))

# 6. Matrix & melt
mat_p1 <- matrix(p1_pad, nrow = nrow, ncol = ncol, byrow = TRUE)
mat_long_p1 <- melt(mat_p1, varnames = c("row","col"), value.name = "pct_log")

# 7. Plot
ggplot(mat_long_p1, aes(x = col, y = row, fill = pct_log)) +
  geom_tile(color = NA) +
  scale_fill_distiller(
    palette   = "Spectral",  # try "RdYlBu", "PuOr", "BrBG", etc.
    direction = 1,           # reverse=FALSE so low values start at red-ish end
    na.value  = "grey90",    # color for the padded NA cells
    guide     = "none"       # hide the legend; remove if you want a colorbar
  ) +
  scale_y_reverse() +
  theme_void() +
  theme(legend.position = "none")

If you have visualization ideas for this data, please open a github issue here.
